Epoxy Resin High Voltage Contact Box Busbar Clamp 250A For Switchgear KYN28

Name: Epoxy Resin High Voltage Contact Box Busbar Clamp 250A For Switchgear KYN28
Brand: DOWE
Price: 23 USD

China Epoxy Resin High Voltage Contact Box Busbar Clamp 250A For Switchgear KYN28 wholesale

Brand Name : DOWE

Model Number : CH3-10Q 250A

Certification : SGS CE REACH

Place of Origin : China(Mainland),Zhejiang

MOQ : 500pcs

Price : USD23/pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 8000pcs per week

Delivery Time : 5days

Packaging Details : 150PCS/CTN

Product namee : contact box

Type : CH3-10Q 250A

Sample : could offer but not free

Dimension : /

Material : epoxy resin

Technology : APG

Application : low-high voltage cabinet

Color : Support to customize

Contact Now

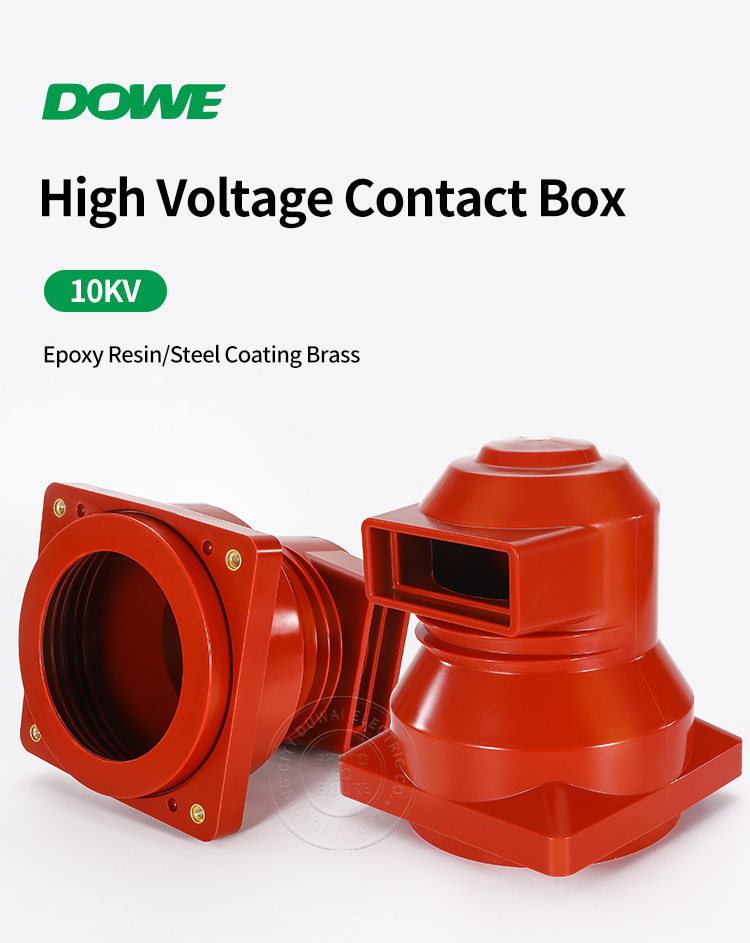

DOWE High Voltage Contact Box CH3-10Q 250A Epoxy Resin For Switchgear KYN28

Definition:
The contact box is made of epoxy resin with APG technology and mainly used for insulating isolation and connecting transition of various indoor withdrawable switchgear and it can be assembled in ABB-design panels.

Descriptions:

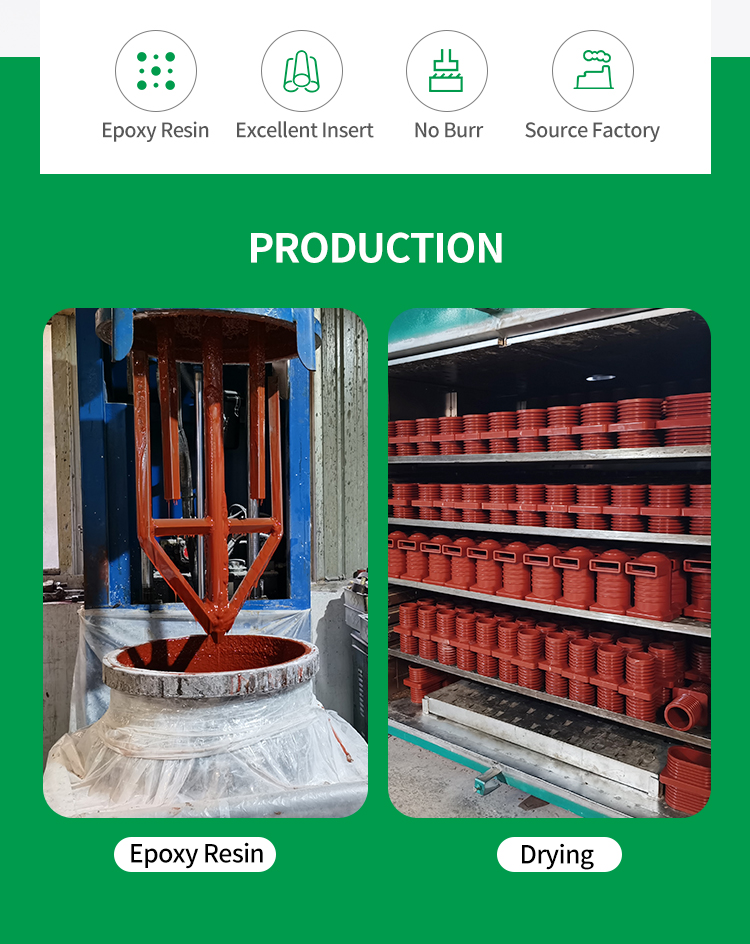

1. Adopt epoxy resin APG technology to manufacture, has good appearance, excellent mechanical and electrical performance.
2. Adopt high tenacity epoxy resin to manufacture, has excellent mechanical performance. Also adopt low reaction active system, has low material solidification speed and interior forces, can improve the mechanical performance of the products in maximum.
3. Add active silica micro powder, can further improve the mechanical performance of epoxy resin, also assure of good electrical insulation performance under long-term moisture environment.
4. Add organic pigment, the products have nice surface with high insulation performance.

Product Name	Contact box
Operating Temperature	-40°C~+140°C
Type	12KV~40.5KV
Material	EPOXY RESIN

Name	Model	Voltage	Current(A)	Install data(mm)	Height(mm)
Contact box	CH3-10Q/150	12KV	630-1250	120X120	250
	CH3-10Q/150		630-1250	120X120	250
	CH3-10Q/180		1250	140X140	250
	CH3-10Q/190		1600	160X160	250
	CH3-10Q/208		1600-2000	170X170	305

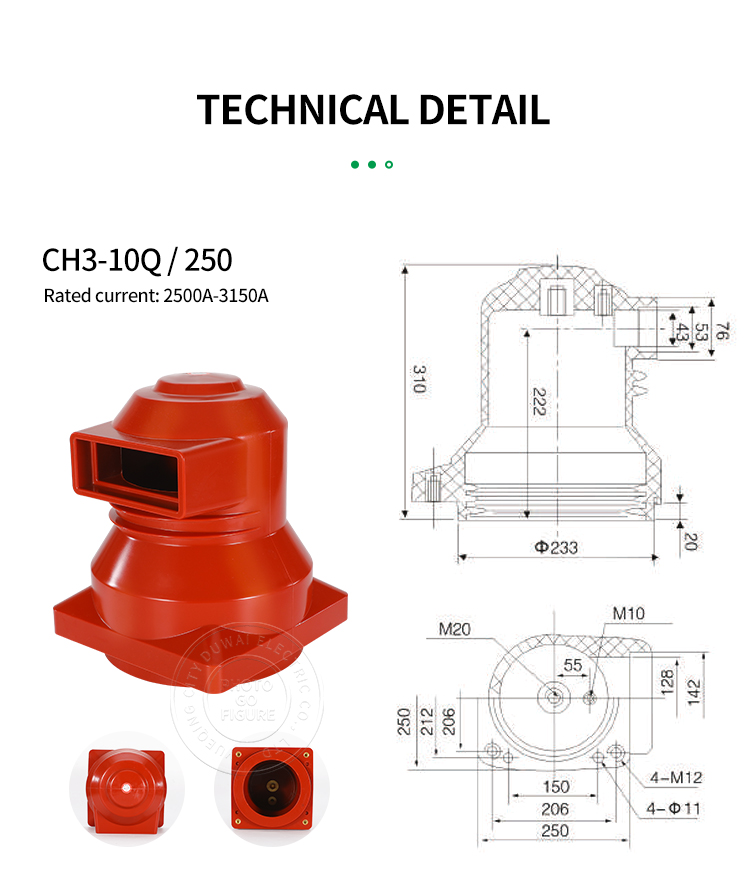

	CH3-10Q/250		2500-3150	206X206	310
	CH3-10Q/270		4000	230X230	300
	CH3-24Q/225	24KV	630A-1600	165X200	340
	CH3-24Q/250		2000A-2500	206X220	375
	CH3-24Q/252		3150A-4000	220X206	375
	CH3-35Q/660(II)	40.5KV			660
	CH3-35Q/660(III)				660
	CH3-35Q/606(II)				606

	WB-35Q/184			540X579	540
	WB-35Q/122			557X495	412
	WB-35Q/80			540X577	80
